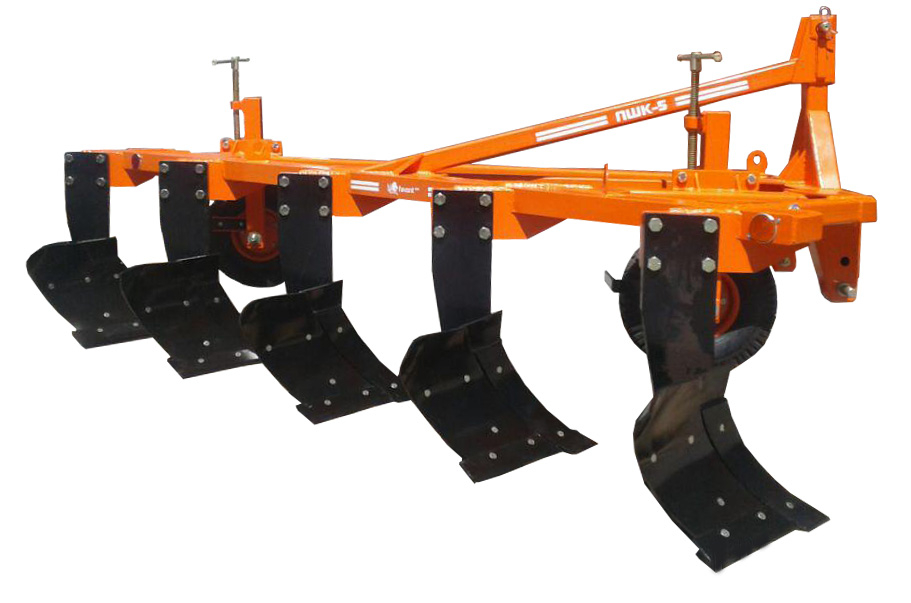

PSK plough - 5
PSK ploughs (high-speed combined plough PSK) fully meet the requirements of technologies, such as: increased productivity by 40-50%, impeccable ploughing quality, ease of installation and operation, maintainability.
The uniqueness and advantage of PSC ploughs lies in the design feature of the working body, which combines the properties of a cultivator and screw plough body with the properties of a chisel plough.
Another feature of the PShK ploughs is that when the mouldboard is removed from the working body, it can be used as a deep-ripper.
The PSK-5 high-speed combined plough is designed for ploughing for grain and industrial crops, to a depth of 16-35 cm of soil not clogged with stones, flagstone and other obstacles, with a resistivity of up to 0.1 MPa, soil hardness of up to 4 MPa and humidity of up to 30%.If the work is carried out on heavy soils and the traction force of the tractor is not enough, the plough can be converted.
. . </tr </tbody </table
| Aggregated with tractors (hp) | 150-180 | Height (mm) | 1500 | |||||||||
| Depth of processing (cm) | 12-35 | Length (mm) | 3850 | |||||||||
| Road clearance (mm) | 350 | Stubble cover, % | 95-98 | |||||||||
| Number of cases (pcs) | 5 | Soil coverage, %75-90 | Maximum ploughing depth (cm) | up to 35 | Maximum working width3.0 | |||||||
| Mass of plough with complete set of working tools (kg) | 1060±50 | Minimum turning radius at the outermost outer point (m) | 7.8 | By vertical ploughshare | up to 35 | |||||||
| By horizontal ploughsharesup to 30 | Full rotation of the layer by 180 degrees | yes | Productivity per hour of main operation (ha/h) | 1.6-2.4 | Working speed (km/h) | up to 10 | Distance from the support plane of the enclosures to the bottom plane of the frame700 | Transport speed (km/h)up to 25 | Specific fuel consumption during shift work (kg/ha) | 10–15 | Width (mm) | 3200 |
| Body gripping width (cm) | 60 |
- Working width, m:3,0
- Working speed, km/h:10
- Performance, ha/h:1,6-2,4
- Tractor power, hp:150-180
- The weight:1050
- Number of rows:5
- Maximum working depth, mm:< 350
